Raspberry PI


The scope of this page is to document the Mini-PI robot.

Mini-PI stands off:

  • Mini: The simplest robot: Miniskybot
  • PI: Raspberry-PI: cheapest Linux PC

The intend is to build a robot, very simple, using 3D printer, and with the Raspeberry-PI as main processor (CPU).

I will start writing here the steps i am following to do it. I have been so many years without building a robot, and now, i feel excited about it. During these years i have been following all Juan's publications, and i will take advantage of all of them: 3D printers, python, Skymega, ...

About me: I am living in California now, that is one of the reasons i am writing this in english, another, is because i would like to present this in my son's school. They knew about my background in robotics and they would like me to present something. They have a strong team in Lego Mindstorms... let's see what i can do!!


The main webs of Raspberry PI are and The board was originally developed as an educational project, and has became very popular during 2012. I recommend to read this note from the authors.

I decided to use it because several reasons:

  • It is cheap
  • It is well documented
  • It is broadly used
  • It has an easy hardware
  • It has a GPIO bus with (IO, I2C, SPI, UART), and of course USB, ETH, ...
  • Supports Debian Linux

So, after having used a lot of embedded kits (TI DMVA2, DM368, Hi3516, Freescale, Versalogic, DM667, ...) i found this kit really interesting for building low cost robotic applications. It took me a while to find the right moment to start, but once i did it, i was surprised about how fast and easy was to set up everything.

I bought the Raspberry-PI here:

There are two models A and B. In my case i bought the B because i wanted it to have Ethernet on the board. Option A is not a bad idea, for example if you want to have Wifi then, instead of buying the model B that has the ETH, you can buy the model-A (cheaper) and a USB-Wifi-Dongle... The PN i got is: E1313RS2V13B1.0

Loading the linux image into the SDCard

The first thing i did was to flash the SDcard. I followed the following links:

In my case i have used Whezzy as the distribution (the recommended for beginners), and i followed the instructions for MacOS users, and since i am a little bit old i decided to use the command line option. I didn't try the graphical tools, but i am pretty sure that they work and are as easy as the command line method. Once i got the SDcard flashed i put it in the raspberry-PI (model B) and it booted without any problem.

These are the instructions from Raspberry (Using command line tools (2)

Note: Some users have reported issues with using Mac OS X to create SD cards.
#These commands and actions need to be performed from an account that has administrator privileges.
# Download the image from a mirror or torrent
# Verify if the the hash key is the same (optional), in the terminal run:
#* shasum ~/Downloads/
# Extract the image:
#* unzip ~/Downloads/
#* (or: just double click the zip, it will extract automatically)
# From the terminal run df -h
# Connect the SD card reader with the SD card inside
# Run df -h again and look for the new device that wasn't listed last time. Record the device name of the filesystem's partition, for example, /dev/disk3s1
# Unmount the partition so that you will be allowed to overwrite the disk:
#* sudo diskutil unmount /dev/disk3s1
#* (or: open Disk Utility and unmount the partition of the SD card (do not eject it, or you have to reconnect it)
# Using the device name of the partition work out the raw device name for the entire disk, by omitting the final "s1" and replacing "disk" with "rdisk"
(this is very important: you will lose all data on the hard drive on your computer if you get the wrong device name). Make sure the device name
 is the name of the whole SD card as described above, not just a partition of it (for example, rdisk3, not rdisk3s1. Similarly you might have another
SD drive name/number like rdisk2 or rdisk4, etc. -- recheck by using the df -h command both before & after you insert your SD card reader into
your Mac if you have any doubts!):
#* For example, /dev/disk3s1 => /dev/rdisk3
# In the terminal write the image to the card with this command, using the raw disk device name from above (read carefully the above step, to be sure you use the correct rdisk# here!):
#* sudo dd bs=1m if=~/Downloads/2012-10-28-wheezy-raspbian/2012-12-16-wheezy-raspbian.img of=/dev/rdisk3
#* if the above command report an error(dd: bs: illegal numeric value), please change bs=1M to bs=1m
#* (note that dd will not feedback any information until there is an error or it is finished, information will show and disk will re-mount when complete. However if you are curious as to the
progresss - ctrl-T (SIGINFO, the status argument of your tty) will display some en-route statistics).
# After the dd command finishes, eject the card:
#* sudo diskutil eject /dev/rdisk3
#* (or: open Disk Utility and eject the SD card)
# Insert it in the Raspberry Pi, and have fun

The first think i saw was the raspi-config tool. The first time i didn't change anything, but once i finish investigating the X-options, i decided to turn off the X-Windows. I am going to run console programs and i will use ssh to connect with the raspberry-PI. In other words, there is no need to have it running now.

Connecting the RaspberryPI

Power Input

Raspberry PI (model B) works with 5VDC / 700mA. There are two ways to powering the board:

  • Using the power in micro-usb connector, or
  • Using the GPIO Bus (P1). Pins2 and 4 are directly connected to the +5VDC line.

It has some protections in the main power line to prevent damages, but, since the 5VDC is also used in the HDMI, USB, etc... by adding a different voltage than 5VDC you never know if something else will break. That is why the recommendation is to stay with 5DV.

The power input connector is a micro-usb connector. For me this is not the best in robotics, however, it is very common in computer, mobiles, that makes not difficult to find a power kit. And the design has been well thought and they still offer the GPIO as a solution, so i am glad to see that they thought in this as well. We will use the GPIO power input later in our robot, but now, let's use the simplest:

I am using the typical micro-usb to usb cable, and the Mean Well (GS05U-USB) Power supply. It has these capabilities:

  • Input: 100-240VAC, 50/60Hz, 0.15A
  • Output: 5VDC, 1A, 5.0 W MAX

These ratings are quite standard, for example iPhone, Samsung Galaxy use the same.

First Boot (Interfaces)

When booting it for the first time, I recommend to use a

  • USB-Mouse
  • USB-Keyboard
  • HDMI output (If you don't an HDMI input in your TV/Monitor you can use the old RCA, however it doesn't give you the best)
  • Standard power supply that has 5VDC and 1A.

(Default login: Username: pi , Password: raspberry)

It will give you a mini PC, your keyboard, graphical interface, mouse. You can play and learn about it. For example, try to connect and Ethernet cable, discover the IP, do an SSH from another PC Basically, become familiar with it. As authors said: Have Fun!!!

Later configuration (Interfaces)

Mini-PI robot is not going to use the graphical interface, so even if it doesn't take too long to boot, i decided to disable it. I ran the rasp-config as sudo and in boot options i seleceted "Disable graphical interface'. Then i disconnected all the cables, because from now on, i am accessing the system using SSH. The idea is not even use the Ethernet, i will add a Bluetooth module in the serial port, or another USB-Wifi to make it Wireless. We will see this later on this article.

Connecting Sensors

Well, now that i have the CPU up and running, i am going to start adding the sensors and motors.
Before starting, let's go to take a look to the RPI's hardware.

The most important note from creator is the following:

The GPIO (general purpose I/O) signals on the 2x13 header pins include SPI, I2C, serial UART, 3V3 and 5V power. These interfaces are not "plug and play" and require care to avoid miswiring. The pins use a 3V3 logic level and are not tolerant of 5V levels, such as you might find on a 5V powered Arduino.

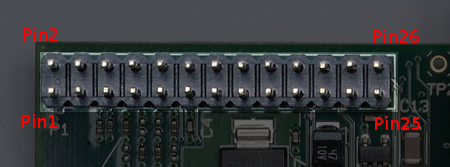

P1 Header Pinout This a copy from RPI information

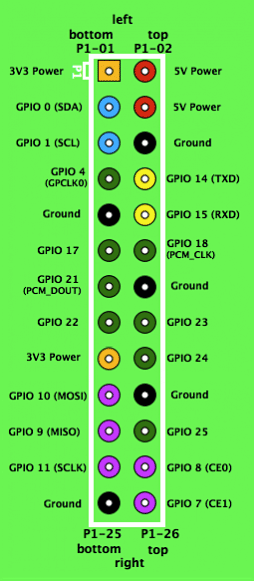

P1 Top View description

RPi P1 header.png

P1 Top View Layout

My assignment

  • Serial Port
RPi P1 Signal BCM pin
pin6 GND
pin 8 TXD GPIO14
pin 10 RXD GPIO15

  • SPI
RPi P1 Signal BCM pin
pin19 MOSI GPIO10
pin 21 MISO GPIO9
pin 23 SCLK GPIO11
pin 24 CE0 GPIO8
pin 25 GND
pin 26 CE1 GPIO7
  • I2C
RPi P1 Signal BCM pin
pin6 GND
pin 8 SCL GPIO14
pin 10 SDL GPIO15
  • 8 bits port = GPI04, GPIO17, GPIO18, GPIO21, GPIO22, GPIO23, GPIO24, GPIO25
RPi P1 Signal BCM pin
pin6 GND
pin 8 TXD GPIO14
pin 10 RXD GPIO15

Sensors to explore

  • Ultrasonic (I2C)
  • Inclinometer (Analog)
  • Compas (I2C)


  • Futaba S3003
  • Robbe
  • Hittec


  • Display: 2C, 16*4 lines
  • LED
  • Relay
  • TTL3v3 to Bluetooth link.

Almost all these sensors and actuators can be connected directly to the Raspberry-Pi, however, since it has an I2C bus, i want to explore connecting the Skymega as well. By doing this, i could have some others sensors connected using the A/D, and i could take advantage of using a micro for some tasks. It is too early to make decisions, now is time to explore everything.

Connecting the Serial Port

I was looking into all my old robotic's stuff from Spain and i found this cable:

  • FTDI: TTL-232R-3V3 (USB cable with 6 way 0.1" pitch single inline connector with +3.3V signaling). Datasheet

The cable comes with a 6 pins connector (GND, CTS, VCC, TXD, RXD, RTS), but i only need three of them (GND, TXD, RXD) so i will put my own connector with only three wires. See the table below, to see my final pin out assignment.

RPI P1 Pin Number Description FTDI Pin Number Description My 3wires connector Description Notes
P1-06 GND Pin1 (Black) GND Pin 1 (Black) GND
P1-08 TXD Pin 5 (Yellow) RXD Pin 2 (Yellow) RXD TTL 3.3v signal
P1-10 RXD Pin 4 (Orange) TXD Pin 3 (Orange) TXD TTL 3.3v signal

So, now the only thing we need is to modify the connector and connect it to P1 to see what happens...

Ok, that was easy. I connected the FTDI USB into my computer (I am using a MAC today) and the serial port was attached to /de/cu.usbserial-FTF5YQGL, i configured to use my minicom in that port (115200,8n1) and i got the connection up & running. By default the serial goes to ttyS0 in the Raspberry-PI, that means that we will see the booting from linux, access to the console, etc... It is a good option for "recovery" but i prefer to have it free as another port for my robots. I mean, instead of being used by linux, being use by custom applications.

To disable the console functionality in the serial port you need to do two things:

  • Edit the /etc/inittab and comment T0:23:respawn:/sbin/getty -L ttyAMA0 115200 vt100
  • Edit the /boot/cmdline.txt and remove the serial port from boot: dwc_otg.lpm_enable=0 console=ttyAMA0,115200 kgdboc=ttyAMA0,115200 console=tty1 root=/dev/mmcblk0p2 rootfstype=ext4 elevator=deadline rootwait. Remove the cursive section.
  • reboot

You can find more information in:
More information about Serial Port in:

Other interfaces

A part of using P1 to connect sensors, I am exploring what else can i connect using the USBs. The Linux Kernel is supporting almost all the standard devices: Mouse, Keyboard, USB_Memories,... But, i have also tried:

USB 2.0 to Ethernet Adapter

With this module i am able to have two ethernets up and running. They go through USB, both of them, so the speed is limited to 100bt. I have used the following module: Rocketfish Model RF-PPC132

'WiFi USB Adapter

ModelBelkin N150 I just connected to the USB and it the new interface appeared in the ifconfig under wlan0. The module was detected by the kernel and i just needed to configure the wireless network.

sudo vi /etc/wpa_supplicant/wpa_supplicant.conf

ssid="YOUR SSID"
pairwise=CCMP TKIP

And then i reboot the system... and that's it.

By default the Raspberry uses DHCP, but you can also configure the WiFi interface as Static:

sudo vi /etc/network/interfaces

allow-hotplug wlan0
auto wlan0
iface wlan0 inet manual
wpa-roam /etc/wpa_supplicant/wpa_supplicant.conf

Console Serial Port over Bluetooth using a Serial to Bluetooth device.

In this page from Miguel Grinberg you can find an excellent description of how to interface the module. I was so lucky because i had that module and this link makes the integration very simple.

I2C and SPI

I removed both of them from the modules blacklist (/etc/modprobe.d/raspi-blacklist.conf)
i rebooted the RPi
sudo modprobe i2c-dev
sudo modprobe spidev

i2c-0, ice-1, spidev0.0 and spidev0.1 are now present in /dev


  • lsusb : List the USB devices attached to your system
