Revisión actual del 08:29 9 sep 2014
| Github |
|---|
Introducción
Rueda del robot Miniskybot, modelo pentáculo, para servos Futaba 3003. Modelada con Freecad 0.14. El diseño se ha impreso en R4i3 para validarlo. Funciona.
Créditos: Es un diseño derivado de la rueda Pentacular para el Protobot, de Nives Cubo (Nicuma)
Descarga
| Miniskybot-wheel-pentacle-futaba3003.fcstd | Rueda Miniskybot modelo Pentáculo, para servos Futaba 3003 (Freecad) |
| Miniskybot-wheel-pentacle-futaba3003-assembly.fcstd | Rueda Miniskybot modelo Pentáculo, para servos Futaba 3003. Ensamblado (Freecad) |
| Miniskybot-wheel-pentacle-futaba3003.stp | Rueda Miniskybot modelo Pentáculo, para servos Futaba 3003 (STEP) |
| Miniskybot-wheel-pentacle-futaba3003-assembly.stp | Rueda Miniskybot modelo Pentáculo, para servos Futaba 3003. Ensamblado (STEP) |
| Miniskybot-wheel-pentacle-futaba3003.stl | Rueda Miniskybot modelo Pentáculo, para servos Futaba 3003 (STL) |
| Miniskybot-wheel-pentacle-futaba3003-assembly.stl | Rueda Miniskybot modelo Pentáculo, para servos Futaba 3003 . Ensamblado (STL) |

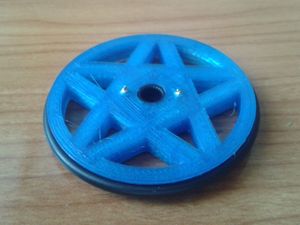

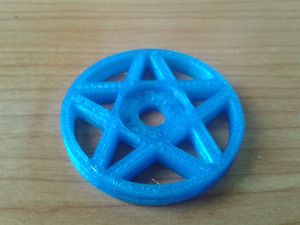

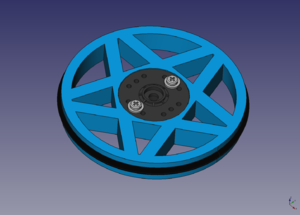

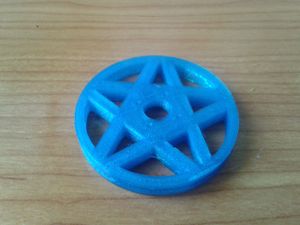

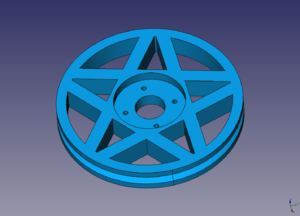

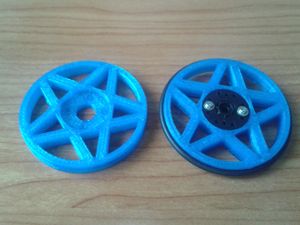

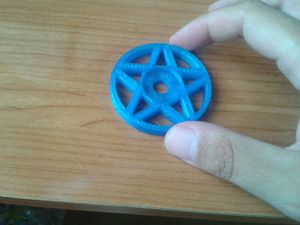

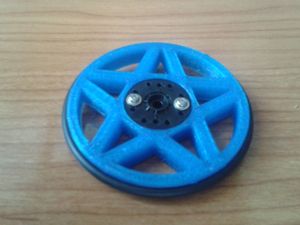

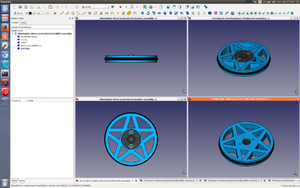

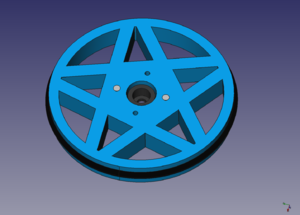

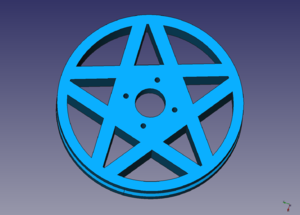

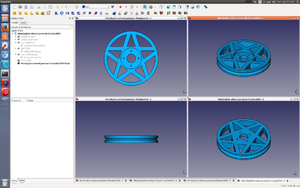

Fotos
| Álbum de fotos |
|---|
Repositorio
- Repositorio: https://github.com/Obijuan/printbot_part_library/tree/master/wheels/Miniskybot-compatible
Autores
- Nieves Cubo: Autora de la rueda pentacular original
- Juan González: Rediseñada para Freecad
Licencia
 This work is licensed under a Creative Commons Attribution-ShareAlike 3.0 Spain License.
|
Enlaces
Noticias
- 9/Septiembre/2014: Publicada primera versión de esta página
